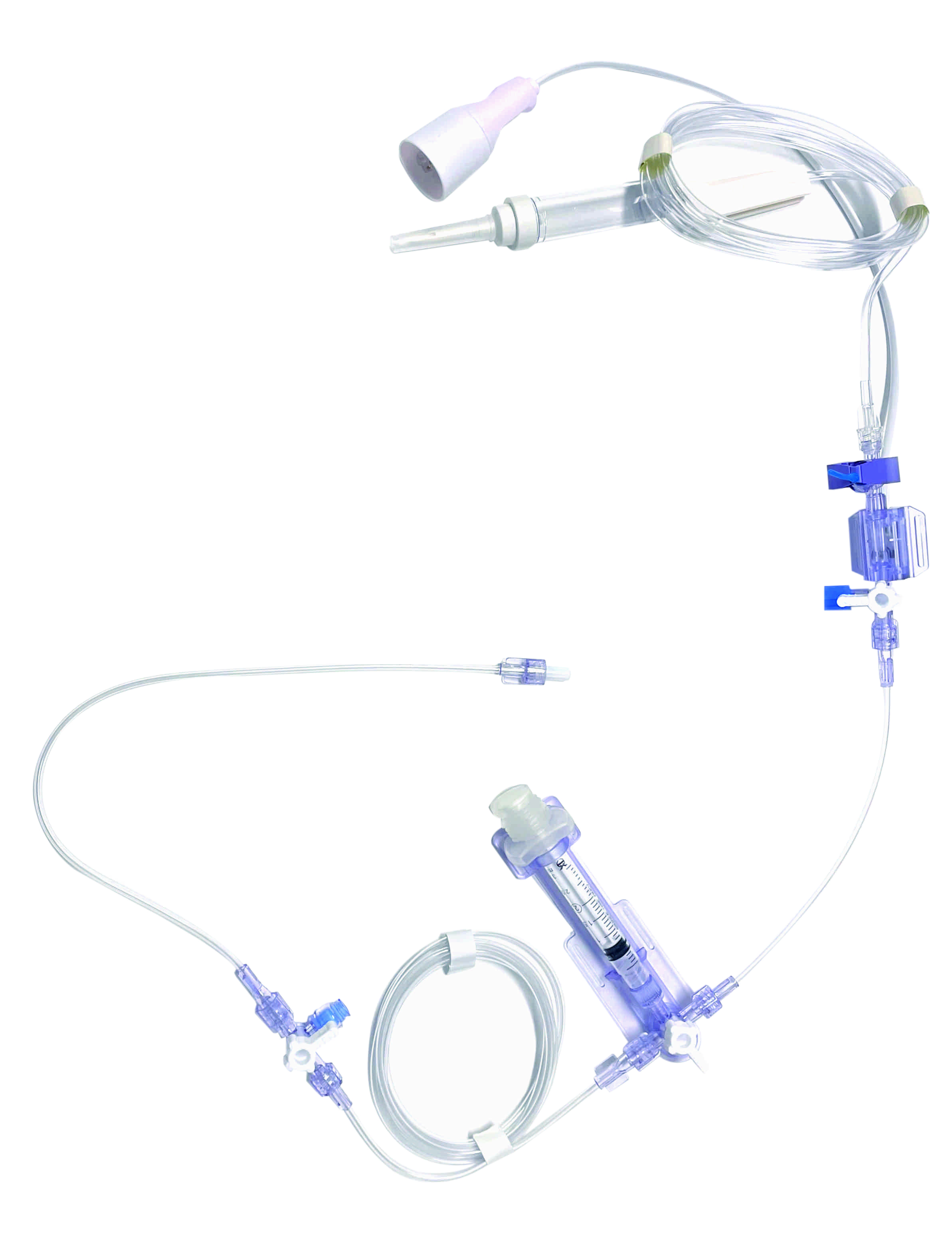

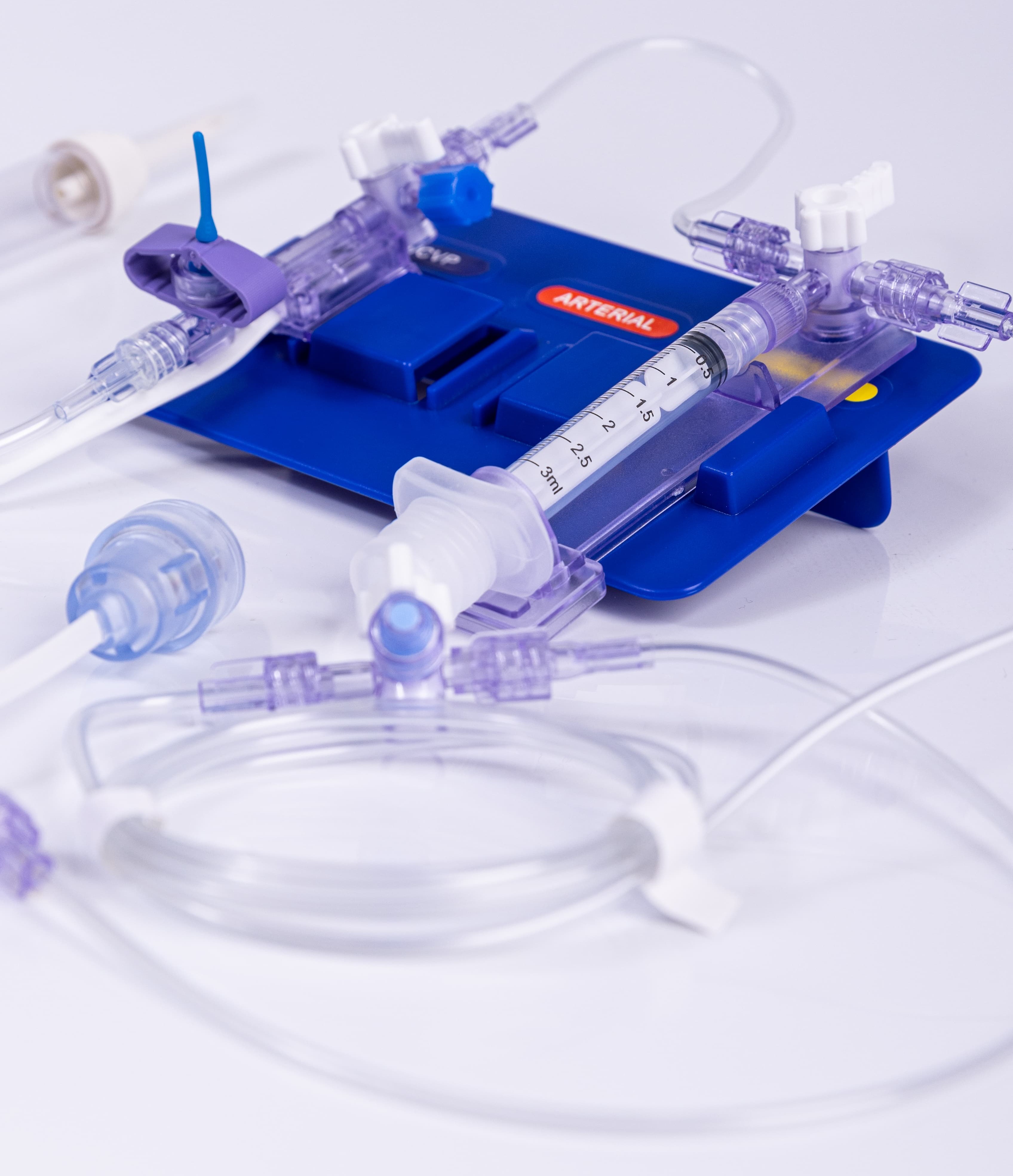

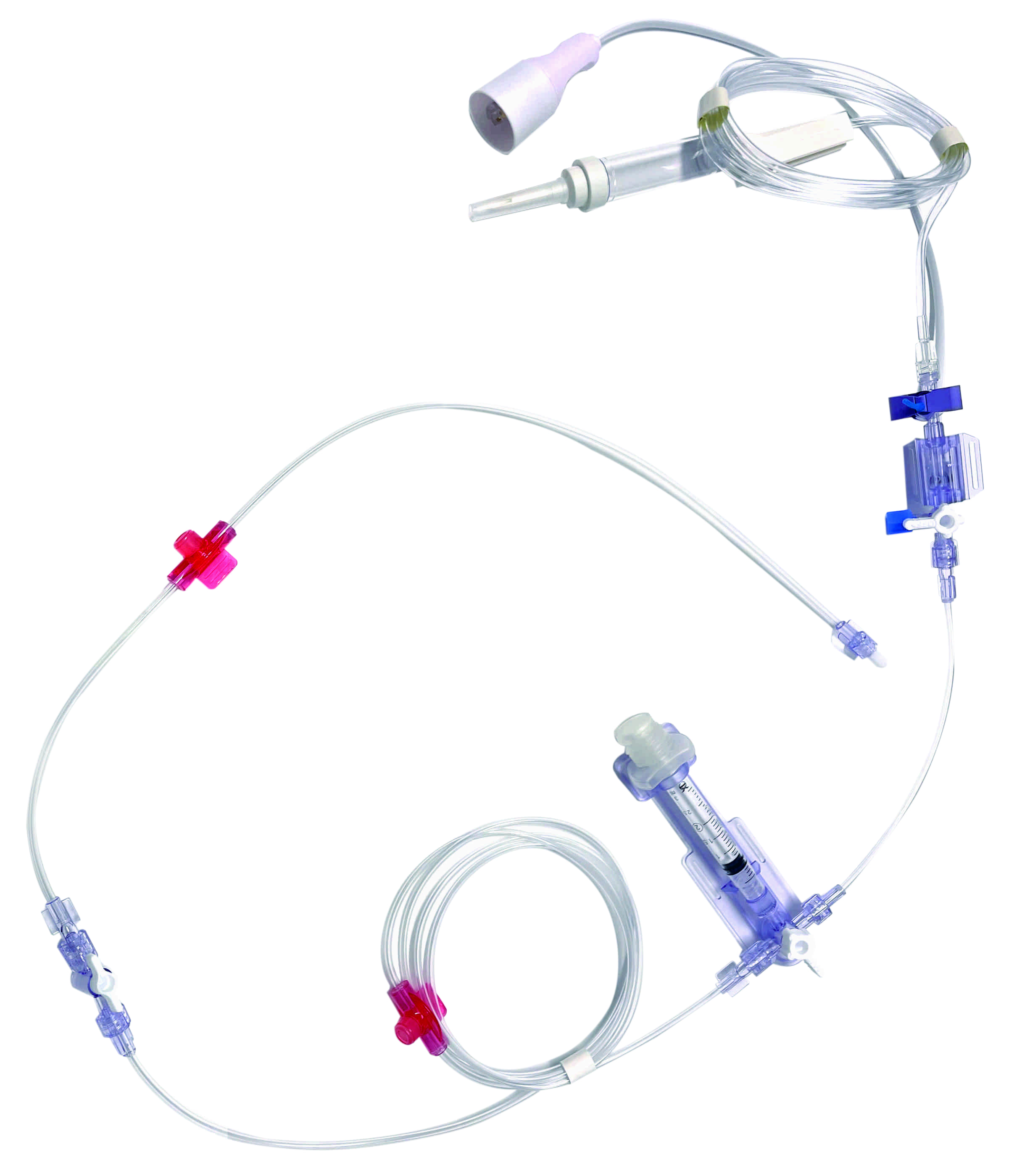

Hisern's disposable pressure transducer with in-line blood sampling system reduces blood waste and minimizes the risk of IV line contamination.
Convenient closed, in-line blood withdrawal directly via pressure-monitoring line increases efficiency of the blood sampling process.
Protect patient's blood from IV-line contamination and limits clinician exposure to blood-borne pathogens.
In-line reservoir allows clinicians to re-infuse rather than discard the clearing volume, minimizing blood loss.
| Item | Specification |
| Operating Pressure Range | -30 to 300 mmHg |
| Sensitivity | 5.0 μV/V/mmHg |
| Zero Output | ±20 mmHg |
| Zero Output Drift | ±1 mmHg in 8 hours |
| Input Impedance | 1200 to 3200 ohms |
| Operating Temperature | 15 to 40℃ |
| Storage Temperature | -25 to 40℃ |
| Pressure Tube Material | PVC |
| Meet AAMI requirements for Blood Pressure Transducers | |
| Meets IEC 60601-2-34 requirements | |
| Model | Channel | Category | Flush Rate | Blood Reservoir | Pcs/carton |
| DBPT-0703C3 | Single | Adult | 3 cc/h | 3 cc | 20 |
| DBPT-0703C5 | Single | Adult | 3 cc/h | 5 cc | 20 |
| DBPT-0703C10 | Single | Adult | 3 cc/h | 10 cc | 20 |
| DBPT-0730C3 | Single | Neo/Ped | 30 cc/h | 3 cc | 20 |
| DBPT-0730C5 | Single | Neo/Ped | 30 cc/h | 5 cc | 20 |
| DBPT-0730C10 | Single | Neo/Ped | 30 cc/h | 10 cc | 20 |
| DBPT-0803C3 | Single | Adult | 3 cc/h | 3 cc | 20 |
| DBPT-0803C5 | Single | Adult | 3 cc/h | 5 cc | 20 |
| DBPT-0803C10 | Single | Adult | 3 cc/h | 10 cc | 20 |
| DBPT-0830C3 | Single | Neo/Ped | 30 cc/h | 3 cc | 20 |
| DBPT-0830C5 | Single | Neo/Ped | 30 cc/h | 5 cc | 20 |
| DBPT-0830C10 | Single | Neo/Ped | 30 cc/h | 10 cc | 20 |
| DBPT-0503C3 | Dual | Adult | 3 cc/h | 3 cc | 20 |
| DBPT-0503C5 | Dual | Adult | 3 cc/h | 5 cc | 20 |
| DBPT-0503C10 | Dual | Adult | 3 cc/h | 10 cc | 20 |
| DBPT-0530C3 | Dual | Neo/Ped | 30 cc/h | 3 cc | 20 |
| DBPT-0530C5 | Dual | Neo/Ped | 30 cc/h | 5 cc | 20 |
| DBPT-0530C10 | Dual | Neo/Ped | 30 cc/h | 10 cc | 20 |
| DBPT-0603C3 | Dual | Adult | 3 cc/h | 3 cc | 20 |
| DBPT-0603C5 | Dual | Adult | 3 cc/h | 5 cc | 20 |
| DBPT-0603C10 | Dual | Adult | 3 cc/h | 10 cc | 20 |
| DBPT-0630C3 | Dual | Neo/Ped | 30 cc/h | 3 cc | 20 |
| DBPT-0630C5 | Dual | Neo/Ped | 30 cc/h | 5 cc | 20 |
| DBPT-0630C10 | Dual | Neo/Ped | 30 cc/h | 10 cc | 20 |
