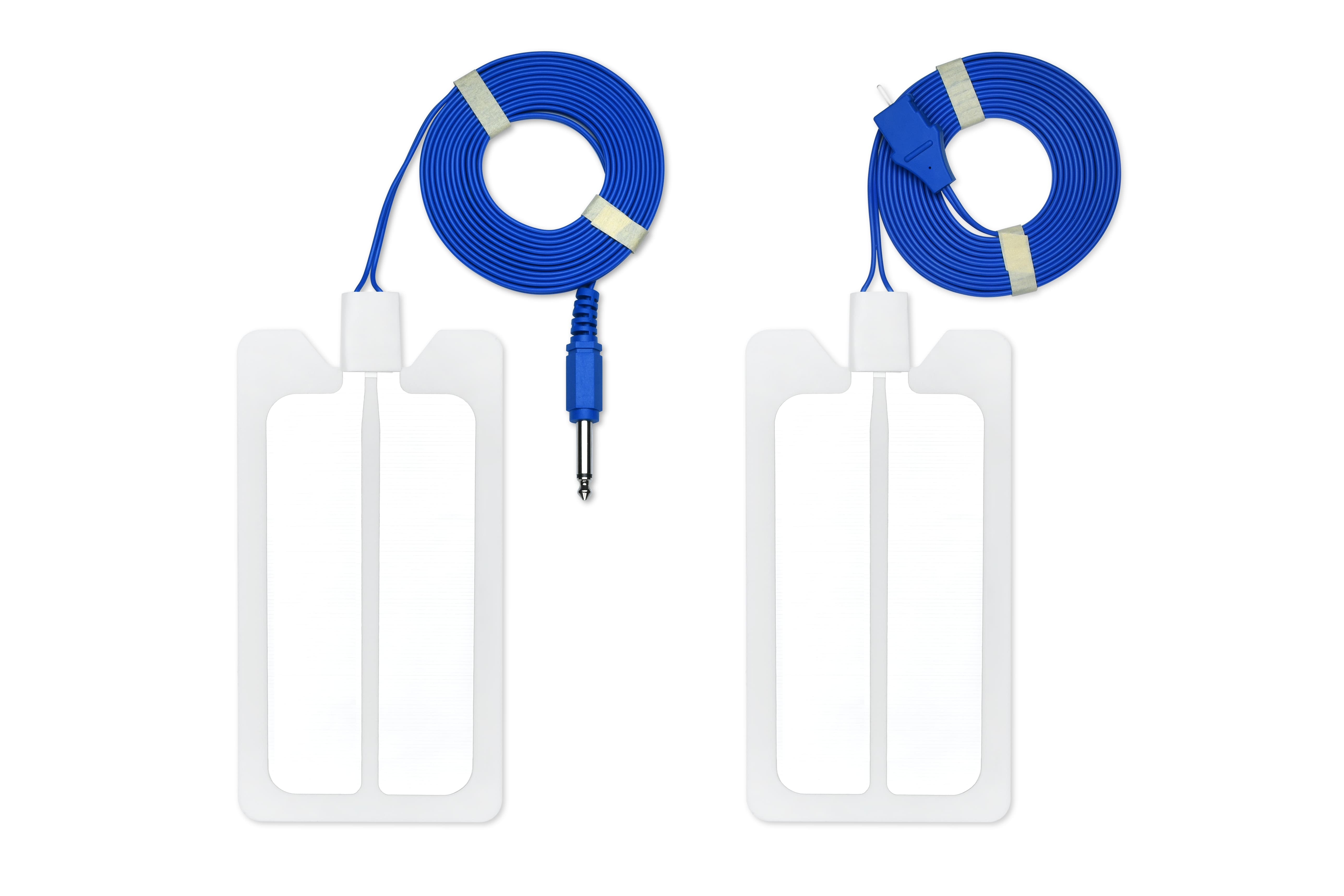

Adult Pediatric Monopolar bipolar patient plate.jpg

Disposable Patient Plate

Introduction

Patient plate (also called return electrode) is used in electrosurgery to remove current from the patient safely.

Features

Fills patient skin irregularities to improve the total electrical conduction area.
Gel and adhesive foam are tolerated even by sensitive skin.
Multiple configurations - available in pediatric and adult sizes.

Product Information Specifications Ordering Information Recommend Recommend

Patient Plate

Hisern offers 2 types patient plate non-split and split for patients ranging from adult to pediatric. Also, there're 3 types connectors available for the cables attached to the patient plate.

Difference between non-split and split type

Non-split: detects whether the patient plate is well connected to the ESU. If it is not well connected, the ESU will send an alarm and cut the power off.

Split: besides detecting the connection between the patient plate and the ESU. It also detects whether the patient plate is well contacted by patient’s skin. If the contact area is insufficient, the ESU will send an alarm and cut the power off.


Model HPP111 HPP121 HPP112 HPP122 HPP211 HPP221 HPP212 HPP222
Type Non-split Split
Category Pediatric Adult Pediatric Adult
Cable 3m cable No cable 3m cable No cable 3m cable No cable 3m cable No cable
Connector Jack Connector/REM/Non-REM
Size 165 x 107mm 223 x 123mm 165 x 107mm 223 x 123mm
Total Surface Size 150 x 90mm 202 x 108mm 150 x 90mm 202 x 108mm
Conductive Area 77 cm2 132 cm2 77 cm2 132 cm2
Substrate Material PE Foam or Nonwoven Fabric
Adhesive Material Conductive Hydrogel
Latex free Yes
Sterility non-sterile
Shelf Life 36 months
Qty/Carton 100 200 100 200 100 200 100 200

PN Model Category Split/Non-spit Cable Connector Pcs/Carton
H00509001 HPP122 Adult Non-split No cable / 200
H00509002 HPP112 Adult Non-split 3m Jack 100
H00509003 HPP112 Adult Non-split 3m Non-REM 100
H00509004 HPP222 Adult Split No cable / 200
H00509005 HPP212 Adult Split 3m Jack 100
H00509006 HPP212 Adult Split 3m Non-REM 100
H00509007 HPP212 Adult Split 3m REM 100
H00509008 HPP121 Pediatric Non-split No cable / 200
H00509009 HPP111 Pediatric Non-split 3m Jack 100
H00509010 HPP111 Pediatric Non-split 3m Non-REM 100
H00509011 HPP221 Pediatric Split No cable / 200
H00509012 HPP211 Pediatric Split 3m Jack 100
H00509013 HPP211 Pediatric Split 3m Non-REM 100
H00509014 HPP211 Pediatric Split 3m REM 100
