Disposable Central Venous Catheter Kit

Introduction

Central venous catheterization allows for an adequate therapy of critically ill patients during complex therapeutic interventions, especially in anesthesia, intensive care and emergency medicine.

Features

Soft tip allows an atraumatic insertion.

Radio-opaque for catheter positioning via X-ray.

Length markings for accurate placement.

Colored plug connectors to easily identify the lumens.

Nitinol guidewire is resilient to kinking.

Optional needle-free Luer-lock valve.


Product Information Specifications Ordering Information Recommend Recommend

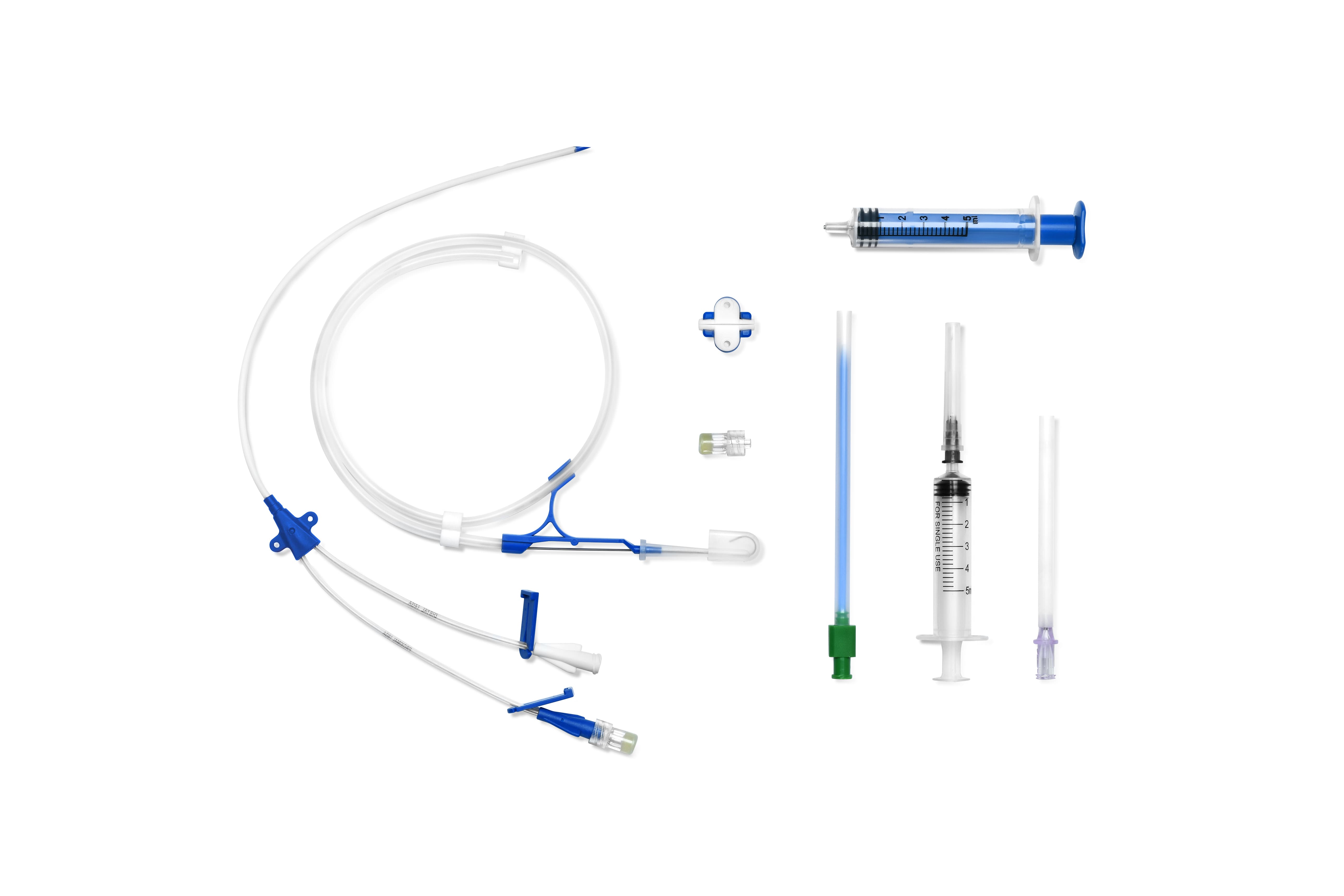

Central venous catheter kit includes central venous catheter, guidewire & dispenser, dilator, disposable syringe (5ml), disposable needle, Raulerson syringe or Y-valve needle, introducer needle, scalpel, suture wings and heparin cap.

Lumen Catheter Φ
(French /
Gauge) 		Catheter
length
(cm) 		Lumen Φ
(Gauge) D/M1/M2/P 		Dilator size
(French
x cm) 		Needle Φ
(Gauge) 		Needle
length
(cm) 		Guidewire
Single 20G 8 20G 4 Fr x 5 cm 20G 3.8 cm 0.021" x 50 cm
20G 13 20G 4 Fr x 5 cm 20G 3.8 cm 0.021"x 50 cm
20G 16 20G 4 Fr x 5 cm 20G 3.8 cm 0.021"x 50 cm
20G 20 20G 4 Fr x 5 cm 20G 3.8 cm 0.021"x 60 cm
18G 8 18G 5 Fr x 6 cm 20G 3.8 cm 0.025"x 50 cm
18G 13 18G 5 Fr x 6 cm 20G 3.8 cm 0.025"x 50 cm
18G 16 18G 5 Fr x 6 cm 20G 3.8 cm 0.025"x 50 cm
18G 20 18G 5 Fr x 6 cm 20G 3.8 cm 0.025" x 60 cm
16G 16 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 50 cm
16G 20 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
16G 25 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
16G 30 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
16G 35 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
16G 40 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
16G 45 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 80 cm
16G 50 16G 6 Fr x 10 cm 18G 6.5 cm 0.032"x 80 cm
14G 16 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 50 cm
14G 20 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
14G 25 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
14G 30 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
14G 35 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
14G 40 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
14G 45 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 80 cm
14G 50 14G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 80 cm
Double 4 Fr 8 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 50 cm
4 Fr 13 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 50 cm
4 Fr 16 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 50 cm
4 Fr 20 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 60 cm
4 Fr 25 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 60 cm
4 Fr 30 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 70 cm
4 Fr 35 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 70 cm
4 Fr 40 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 70 cm
4 Fr 45 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 80 cm
4 Fr 50 22 G/22 G 5 Fr x 6 cm 20G 3.8 cm 0.018" x 80 cm
5 Fr 8 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 50 cm
5 Fr 13 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 50 cm
5 Fr 16 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 50 cm
5 Fr 20 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 60 cm
5 Fr 25 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 60 cm
5 Fr 30 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 70 cm
5 Fr 35 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 70 cm
5 Fr 40 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 70 cm
5 Fr 45 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 80 cm
5 Fr 50 18 G/20 G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 80 cm
7 Fr 16 14 G/18 G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 50 cm
7 Fr 20 14 G/18 G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
7 Fr 25 14 G/18 G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
7 Fr 30 14 G/18 G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
7 Fr 35 14 G/18 G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
7 Fr 40 14 G/18 G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
Triple 5.5 Fr 8 20G/22G/22G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 50 cm
5.5 Fr 13 20G/22G/22G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 50 cm
5.5 Fr 16 20G/22G/22G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 50 cm
5.5 Fr 20 20G/22G/22G 6 Fr x 7 cm 20G 3.8 cm 0.021" x 60 cm
7 Fr 16 16G/18G/18G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 50 cm
7 Fr 20 16G/18G/18G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
7 Fr 25 16G/18G/18G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
7 Fr 30 16G/18G/18G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
7 Fr 35 16G/18G/18G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
7 Fr 40 16G/18G/18G 8 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm
Quad 8.5 Fr 16 16G/14G/18G/18G 9 Fr x 10 cm 18G 6.5 cm 0.032"x 50 cm
8.5 Fr 20 16G/14G/18G/18G 9 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
8.5 Fr 25 16G/14G/18G/18G 9 Fr x 10 cm 18G 6.5 cm 0.032"x 60 cm
8.5 Fr 30 16G/14G/18G/18G 9 Fr x 10 cm 18G 6.5 cm 0.032"x 70 cm

PN Lumen Patient Raulerson syringe / Y-valve needle Catheter Φ (French / Gauge) Catheter length
(cm) 		Lumen Φ (Gauge) D/M1/M2/P Pcs/Carton
H04009001 Single Child Raulerson syringe 20G 8 20G 80
H04009002 Single Child Raulerson syringe 20G 13 20G 80
H04009003 Single Child Raulerson syringe 20G 16 20G 80
H04009004 Single Child Raulerson syringe 18G 8 18G 80
H04009005 Single Child Raulerson syringe 18G 13 18G 80
H04009006 Single Child Raulerson syringe 18G 16 18G 80
H04009007 Single Adult Raulerson syringe 16G 16 16G 80
H04009008 Single Adult Raulerson syringe 16G 20 16G 80
H04009010 Single Adult Raulerson syringe 14G 16 14G 80
H04009011 Single Adult Raulerson syringe 14G 20 14G 80
H04009013 Single Child Y-valve needle 20G 8 20G 80
H04009014 Single Child Y-valve needle 20G 13 20G 80
H04009015 Single Child Y-valve needle 20G 16 20G 80
H04009016 Single Child Y-valve needle 18G 8 18G 80
H04009017 Single Child Y-valve needle 18G 13 18G 80
H04009018 Single Child Y-valve needle 18G 16 18G 80
H04009019 Single Adult Y-valve needle 16G 16 16G 80
H04009020 Single Adult Y-valve needle 16G 20 16G 80
H04009022 Single Adult Y-valve needle 14G 16 14G 80
H04009023 Single Adult Y-valve needle 14G 20 14G 80
H04009025 Double Child Raulerson syringe 4 Fr 8 22 G/22 G 80
H04009026 Double Child Raulerson syringe 4 Fr 13 22 G/22 G 80
H04009027 Double Child Raulerson syringe 4 Fr 16 22 G/22 G 80
H04009028 Double Child Raulerson syringe 5 Fr 8 18 G/20 G 80
H04009029 Double Child Raulerson syringe 5 Fr 13 18 G/20 G 80
H04009030 Double Child Raulerson syringe 5 Fr 16 18 G/20 G 80
H04009031 Double Adult Raulerson syringe 7 Fr 16 14 G/18 G 80
H04009032 Double Adult Raulerson syringe 7 Fr 20 14 G/18 G 80
H04009034 Double Child Y-valve needle 4 Fr 8 22 G/22 G 80
H04009035 Double Child Y-valve needle 4 Fr 13 22 G/22 G 80
H04009036 Double Child Y-valve needle 4 Fr 16 22 G/22 G 80
H04009037 Double Child Y-valve needle 5 Fr 8 18 G/20 G 80
H04009038 Double Child Y-valve needle 5 Fr 13 18 G/20 G 80
H04009039 Double Child Y-valve needle 5 Fr 16 18 G/20 G 80
H04009040 Double Adult Y-valve needle 7 Fr 16 14 G/18 G 80
H04009041 Double Adult Y-valve needle 7 Fr 20 14 G/18 G 80
H04009043 Triple Child Raulerson syringe 5.5 Fr 8 20G/22G/22G 80
H04009044 Triple Child Raulerson syringe 5.5 Fr 13 20G/22G/22G 80
H04009045 Triple Child Raulerson syringe 5.5 Fr 16 20G/22G/22G 80
H04009046 Triple Adult Raulerson syringe 7 Fr 16 16G/18G/18G 80
H04009047 Triple Adult Raulerson syringe 7 Fr 20 16G/18G/18G 80
H04009049 Triple Child Y-valve needle 5.5 Fr 8 20G/22G/22G 80
H04009050 Triple Child Y-valve needle 5.5 Fr 13 20G/22G/22G 80
H04009051 Triple Child Y-valve needle 5.5 Fr 16 20G/22G/22G 80
H04009052 Triple Adult Y-valve needle 7 Fr 16 16G/18G/18G 80
H04009053 Triple Adult Y-valve needle 7 Fr 20 16G/18G/18G 80
H04009056 Quad Adult Raulerson syringe 8.5 Fr 20 16G/14G/18G/18G 80
H04009059 Quad Adult Y-valve needle 8.5 Fr 20 16G/14G/18G/18G 80
