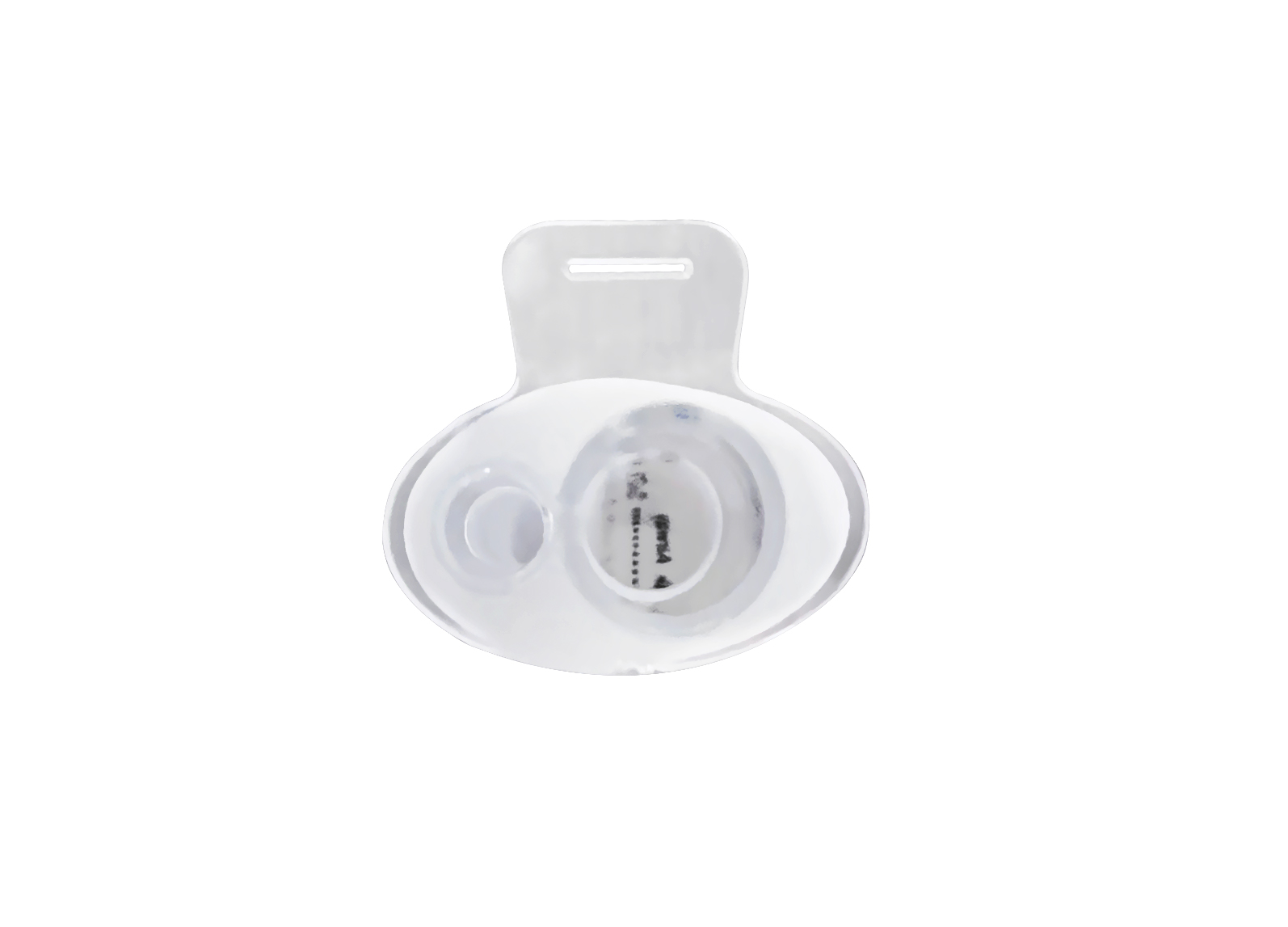

Double lumen laryngeal mask airway has a built-in drain tube that allows expelled gastric content and regurgitated fluid to pass without leaking into the glottis. It also offers easy access for a fiberoptic bronchoscope for alignment inspection.
ISO Standard Connector provides universal connection.
Gastric Lumen for management of regurgitated fluid.
Transparent Tube enables detection of blood, secretions and regurgitated gastric contents.
Tube Printing clearly visible for quick reference.
Soft Cuff conforms to the contours of the hypopharynx for exceptional fit.
Atraumatic Cuff Tip prevents potential trauma caused by excessive pressure.
| Model | Size | Patient | Patient Weight | Max Cuff Vol. | Max Gastric Tube | Mask Material | Latex-free | Sterility |
| DLM1.0S | 1.0 | Neonate | up to 5 kg | 4 mL | 8 Fr | Silicone | Yes | Sterile |
| DLM1.5S | 1.5 | Infant | 5-10 kg | 7 mL | 8 Fr | Silicone | Yes | Sterile |
| DLM2.0S | 2.0 | Infant/Child | 10-20 kg | 10 mL | 12 Fr | Silicone | Yes | Sterile |
| DLM2.5S | 2.5 | Child | 20-30 kg | 14 mL | 12 Fr | Silicone | Yes | Sterile |
| DLM3.0S | 3.0 | Child | 30-50 kg | 20 mL | 16 Fr | Silicone | Yes | Sterile |
| DLM4.0S | 4.0 | Adult | 50-70 kg | 30 mL | 16 Fr | Silicone | Yes | Sterile |
| DLM5.0S | 5.0 | Adult | 70-100 kg | 40 mL | 16 Fr | Silicone | Yes | Sterile |
| PN | Lumen | Model | Size | Patient | Patient Weight | Pcs/Carton |
| H01109008 | Double | DLM1.0S | 1.0 | Neonate | up to 5 kg | 30 |
| H01109009 | Double | DLM1.5S | 1.5 | Infant | 5-10 kg | 30 |
| H01109010 | Double | DLM2.0S | 2.0 | Infant/Child | 10-20 kg | 30 |
| H01109011 | Double | DLM2.5S | 2.5 | Child | 20-30 kg | 30 |
| H01109012 | Double | DLM3.0S | 3.0 | Child | 30-50 kg | 30 |
| H01109013 | Double | DLM4.0S | 4.0 | Adult | 50-70 kg | 30 |
| H01109014 | Double | DLM5.0S | 5.0 | Adult | 70-100 kg | 30 |
