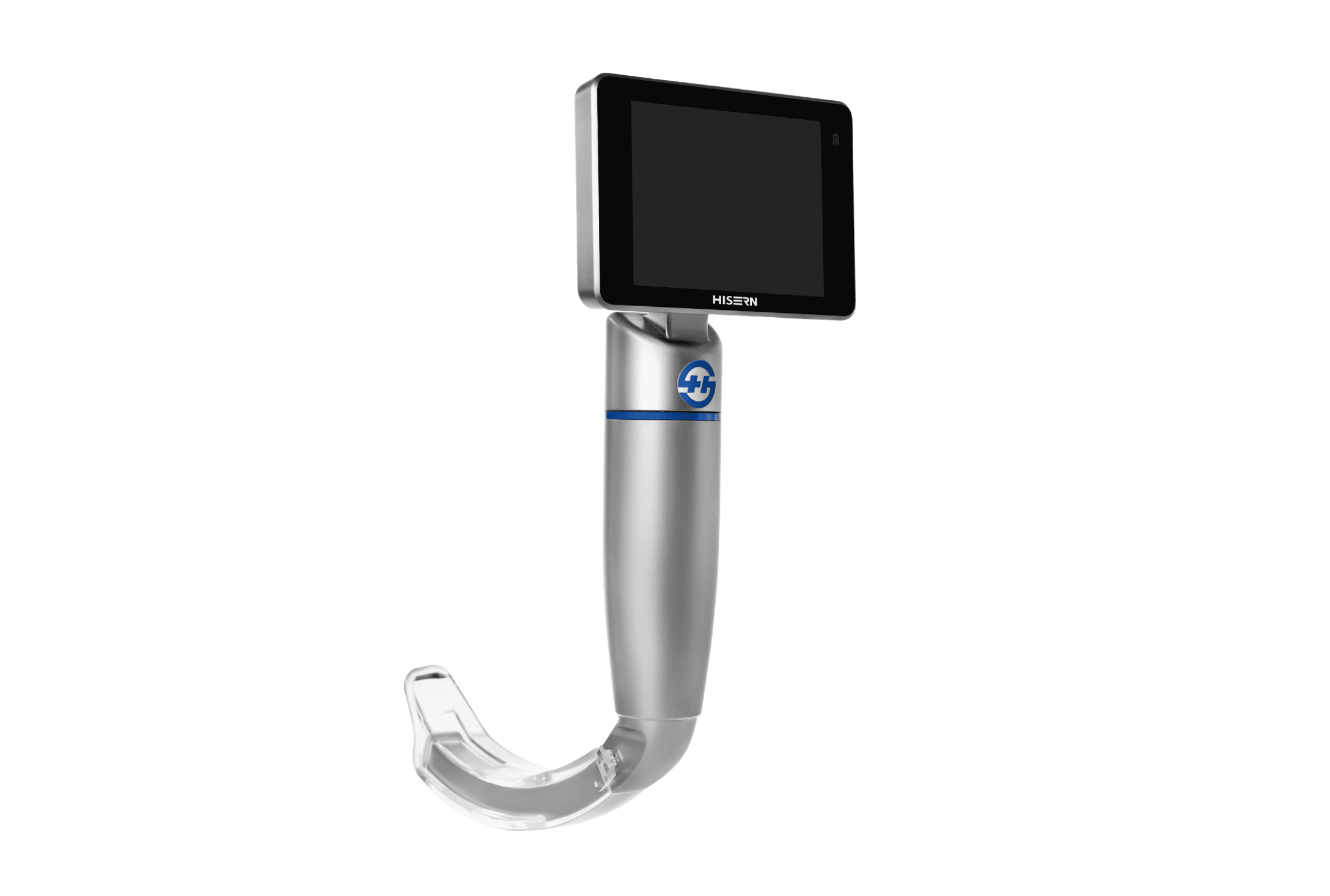

A rigid laryngoscope with camera used for endotracheal tube intubation.
3-inch HD monitor displays vocal cord and glottis images clearly.
One click to open, quick start, runs immediately.
Long-lasting Battery supports continuous working of 4 hours.
Ergonomic Design with Al alloy frame for better grip during use.
| Item | Specifications |
| Model | HS-VL 01、HS-VL 02 |
| Continuous working time | 4 hours |
| Input voltage | 100-240V, 50/60Hz |
| Output voltage | DC5V, ≥1A |
| Charging port | USB port |
| Battery | 1 cell, 3.7V, ≥2500mAh |
| Display | ≥3 inches, ≥300,000 pixels, resolution ≥3Lp/mm |
| Illumination | ≥250lux |
| Camera pixels | ≥300,000 pixels |
| Working temperature | 5～40℃ |
| Working relative humidity | 30%～75%, no condensation |
| Working air pressure | 86kPa～106kPa |
| Storage temperature | -40～55℃ |
| Storage environment humidity | ≤93% |
| Field of view | Working distance 30mm, field of view ≥50° |
| Rotation angle | ≥90° |
| PN | Model | Machine Model | Blade Model | Patient | Blade Size | Pcs/Carton |
| H03709001 | HS-VL 01-L | HS-VL 01 | HS-SP-L | Adult | Large | 1 |
| H03709002 | HS-VL 01-M | HS-VL 01 | HS-SP-M | Adult | Medium | 1 |
| H03709003 | HS-VL 01-S | HS-VL 01 | HS-SP-S | Adult | Small | 1 |
| H03709004 | HS-VL 02-SS | HS-VL 02 | HS-SP-SS | Pediatric | Extra small | 1 |
